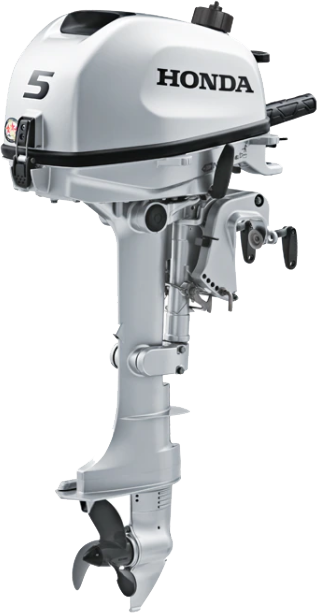

Honda 5 HP
QUIET, DEPENDABLE, LIGHTWEIGHT
Which is exactly what you want in a portable outboard. The BF5 is incredibly lightweight and compact. It’s easy to transport and ideal for small tenders, and jon boats.
With features designed to make your boat ride smooth, quiet, and Honda dependable, you’ll be ready to enjoy a day on the water for years to come.
RELIABLE, EFFICIENT 4-STROKE DESIGN
World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing.
LIGHTWEIGHT AND COMPACT
The BF5’s lightweight, compact design makes it perfect for small tenders, sailboats, jon boats, and inflatables. Weighing in at only 60 pounds, this motor is easy to transport.
EASY TO START AND STOP
You’ll be impressed with how easy it is to start the BF5. The decompression mechanism opens the exhaust valve during the starting process. This reduces the amount of force needed to start the motor. Starting is easy, every time. The one-push stop switch makes it just as easy to shut off the motor. Pressing the stop button once safely shuts off the motor without it re-starting.
LARGE CAPACITY INTERNAL FUEL TANK FOR BEST INTERNAL FUEL TANK FOR BEST-IN-CLASS RUN TIME
The 1.5 L internal fuel tank provides enough fuel for over 40 minutes of wide-open throttle operation. Need more run time? The BF5 offers an external fuel tank connection.
QUIET AND SMOOTH – LOW VIBRATION FOR A COMFORTABLE RIDE
Honda’s exclusive design optimizes the isolation mounts to minimize the transfer of vibration to both the tiller handle and the transom. The custom rubber mounts absorb vibration, resulting in a motor with among the lowest handle vibrations in its class.
6 AMP CHARGING SYSTEM AVAILABLE
An optional 6 amp charging system helps keep accessories and electronics charged.
EASY TO CARRY AND INSTALL
Enlarged carrying handles provide superior portability and ease of installation. The BF5 is also designed to make be easy to carry, either front and back or on each side.
CONVENIENT FOLD-DOWN TILLER HANDLE
The tiller handle’s compact design allows for easy transportation and storage.
QUIETEST IN IT’S CLASS
The BF5 leads its class in noise reduction from low to high speed.
LARGE DISPLACEMENT ENGINE FOR MORE POWER
Water-cooled, single-cylinder design for better low- to mid-range power.
TWIST GRIP THROTTLE – MORE COMFORTABLE TO USE
Allows for precise throttle control. A unique throttle tensioner minimizes driver fatigue.
TRUE 5 WARRANTY – UNMATCHED PEACE OF MIND
Honda’s True 5 Warranty is the best in the business. This transferable, non-declining warranty is the same on the first day as it is on the last.
4-FRONT CORROSION PROTECTION SYSTEM – FIGHTS THE ELEMENTS
A patented, “Double Sealed” multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
DOUBLE ALERTS PROTECT YOUR ENGINE
A Low Oil Alert combined with an RPM reduction feature protects the engine from severe damage if the oil reaches a low pressure.
SHALLOW WATER DRIVE
An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas. Shallow water drive greatly reduces the risk of engine damage.
F-N-R GEARSHIFT
The BF5 features full forward, neutral, and reverse shifting. A safety lockout system allows the engine to be started in neutral gear only.
POSITIVE LUBRICATION – BETTER DURABILITY
A crankshaft-driven, automotive-style trochoid oil pump ensures the long-term durability of critical engine components.
ULTRA LOW 3 STAR CARB EMISSIONS
Environmentally conscious technology. All Honda Marine engines exceed the highest CARB 3-Star rating to meet the rigorous California Air Resource Board’s standards.
Available in both 15 and 20-inch shaft models
Engine
| Type | 4-Stroke OHV, 1 Cylinder/2 Valves |
| Displacement | 127 cc (7.8 cubic inches) |
| Bore & Stroke | 60 mm x 45 mm (2.4 x 1.8 inches) |
| Full Throttle RPM Range | 4,500-5,500 RPM |
| Rated Power | 5 HP @ 5,000 RPM |
| Cooling System | Water Cooled |
| Fuel Delivery | 1 Carburetor |
| Internal Fuel Tank Capacity | 1.5L (.39 gal.) |
| Ignition System | Digital CDI |
| Starting System | Recoil |
| Exhaust | Under Water, Above Propeller |
| Lubrication | Wet Sump |
| Trim Range | 5-Stage 5°-9°-13°-17°-21° |
| Tilt Range | 70° |
Drive
| Gear Ratio | 2.08:1 |
| Gear Shift | F-N-R |
| Alternator | 3-Amp; Opt. 6-Amp |
| Propeller | 3-Blade Aluminum |
| Diameter x Pitch | 7⅞ x 7½ inches |
| Available Optional Propellers | 3.000 |
| Oil Pressure Alert | Standard |
| Low Oil Pressure RPM Reduction | Standard |
| Rev-Limiter | Standard |
| External Fuel Tank Connector | Standard |
| Decompression Mechanism | Standard |
| One-Touch Stop Button | Standard |
Dimensions
| Overall Width | 347 mm/13.66 in. |
Transom Height
| S Type | 434 mm/15 in. |
| L Type | 561 mm/20 in. |
Dry Weight
| S-Type | 27 kg/60 lb. |
| L-Type | 27.5 kg/60.6 lb. |
